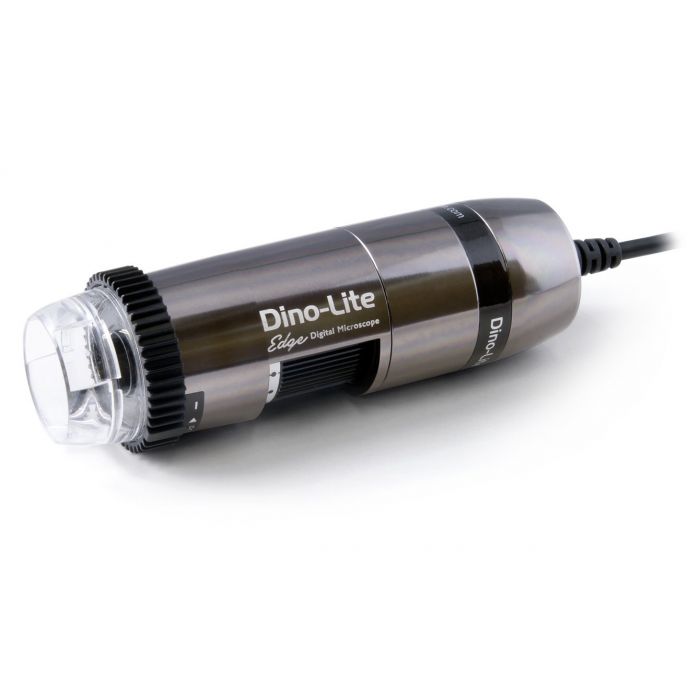

Product Information: AM7915MZTL USB Microscope

Key Features:
• 5 Megapixel Resolution
• Up to 230x Magnification
• Flexible Light Control (FLC)
• Polarization Filter
• Automatic Magnification Reading (AMR)
• Extended Depth of Field (EDOF)
• Accurate and Easy Measurements

The AM7915MZTL USB Microscope enables precise measurements using the provided software. You can measure lines, angles, radii, and circles. The measurement results and corresponding image can be easily exported to Excel for creating a comprehensive report.

Enhanced Accuracy with Automatic Magnification Reading (AMR)
The AMR function automatically transfers the magnification into the software, improving measurement accuracy and reducing errors. Measurements can be taken both in LIVE mode and on saved images, offering flexible analysis.

Simple Calibration
For precise measurements, calibration is essential. With the included calibration standard and user-friendly software, calibration is straightforward and quick. The software guides you through the steps to ensure accurate calibration.

Extended Depth of Field (EDOF) for Detailed Images
The EDOF feature (Extended Depth of Field) allows for a greater depth of field in the images. Multiple focus layers are captured and merged using photo stacking, creating a single image with enhanced sharpness. This feature is especially useful for detailed analysis in various industries.

Optimal Lighting with FLC and Polarization Filter
The FLC allows for customizable brightness control of the 8 white LEDs. You can adjust the light intensity or turn it off entirely to achieve the perfect lighting for different samples. The polarization filter helps reduce light reflections on shiny materials, ensuring clearer and more accurate images, particularly when analyzing reflective surfaces.

Front Cap System and Diffusers for Improved Visibility
The advanced front cap system allows you to work without a front cap for unobstructed viewing of your sample. The microscope comes with interchangeable front caps (which may vary depending on the model) to adapt to different applications. Additionally, using diffusers helps reduce light reflections and improves the overall image quality.

Durable, Lightweight Design
The AM7915MZTL features a durable aluminum housing that ensures both stability and portability, making it ideal for use in various locations.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM7915MZTL
• Working Distance: Long
• Resolution: 5 Megapixels
• Magnification: 10x - 230x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement Function & Calibration
• Polarization Filter
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of high-quality microscopes that connect to a Windows PC or Mac via USB. Some models feature wireless connectivity, allowing direct communication with smartphones. The included software enables quick measurement of surfaces and components. Results can be exported directly to Excel, and images can be processed and exported in nearly any format. With up to 8 Megapixels of resolution, even the smallest details are clearly visible. The built-in chipset ensures excellent color and image reproduction. Depending on the model, Dino-Lite microscopes offer magnification up to 900x, with typical usage between 50x and 230x magnification.

Our Recommendation:
Pair this microscope with the RK-06 Stand for exceptional fine adjustment capabilities, making it the perfect addition to your lab setup.
