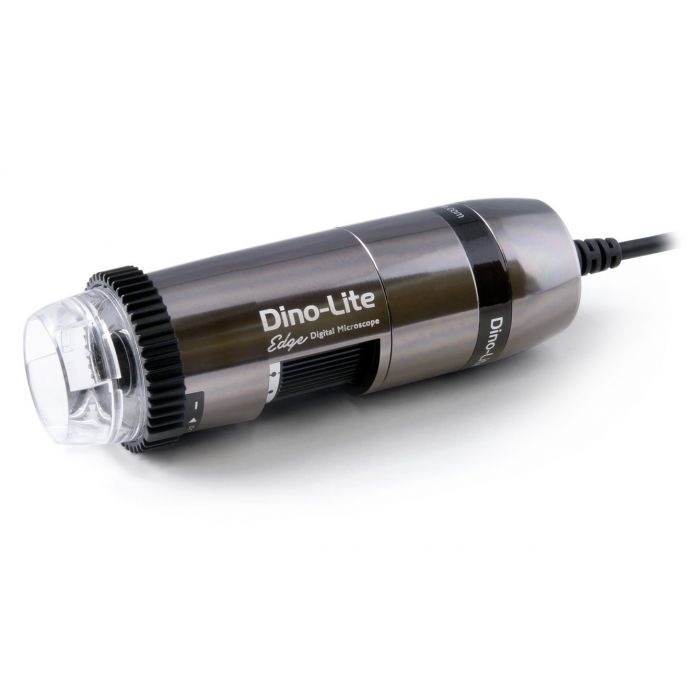

Product Information: AM7915MZT USB Microscope

Key Features:
• 5 Megapixel Resolution
• Up to 230x Magnification
• Flexible Light Control (FLC)
• Polarization Filter
• Automatic Magnification Reading (AMR)
• Extended Depth of Field (EDOF)
• Accurate and Easy Measurements

The AM7915MZT USB Microscope provides the ability to perform precise measurements using its software. You can measure lines, angles, radii, and circles. The measurement results and the corresponding image can be easily exported to Excel with a single click, enabling the creation of comprehensive measurement reports.

Enhanced Accuracy with Automatic Magnification Reading
The AMR function (Automatic Magnification Reading) ensures that the magnification is automatically transmitted to the DinoCapture software, reducing measurement errors and increasing accuracy. Measurements can be taken both in LIVE mode and on saved images, allowing for flexible analysis.

Simplified Calibration
For accurate and reliable measurements, proper calibration is essential. With the included calibration standard, the calibration process is quick and easy. The software guides you step-by-step to ensure a precise calibration.

EDOF for Extended Depth of Field
The EDOF (Extended Depth of Field) function is particularly useful in industries such as aerospace, where precise images of parts and components are crucial. The EDOF function creates high-quality, sharp images by combining multiple focus layers, which enhances image clarity across different depths.

Optimal Lighting with FLC & Polarization Filter
Proper lighting is critical for achieving high-quality, detailed images. The AM7915MZT comes with an 8-LED white ring light that can be adjusted or turned off using FLC (Flexible Light Control). This allows you to optimize the lighting for different types of samples. The polarization filter is ideal for reducing unwanted light reflections on reflective materials, especially useful when examining shiny surfaces. The advanced front cap system enables you to work without a front cap, providing clearer views of the object being studied. Additionally, various front caps can be attached based on the application, and using diffusers can reduce light reflections.

Durable & Portable Design
The AM7915MZT features a high-quality aluminum housing, providing both robustness and lightness, making it ideal for portable use across various locations.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM7915MZT
• Working Distance: Standard
• Resolution: 5 Megapixels
• Magnification: 20x - 230x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement Function & Calibration
• Polarization Filter
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite Hand Microscopes are a series of microscopes that connect easily to a Windows PC or Mac via USB. There are also wireless models that transmit the signal directly to a smartphone. The included software allows you to quickly measure surfaces and components. Results can be exported directly to Excel, and images can be processed and exported in nearly any image format. With up to 8 Megapixels resolution, even the smallest details are clearly displayed. The built-in chipset ensures exceptional color and image reproduction. Depending on the model, Dino-Lite microscopes can achieve up to 900x magnification, with typical use between 50x and 230x magnification.

Our Recommendation:
Pair this microscope with the RK-06 Stand for excellent fine adjustment capabilities, making it the perfect addition to your lab setup.
