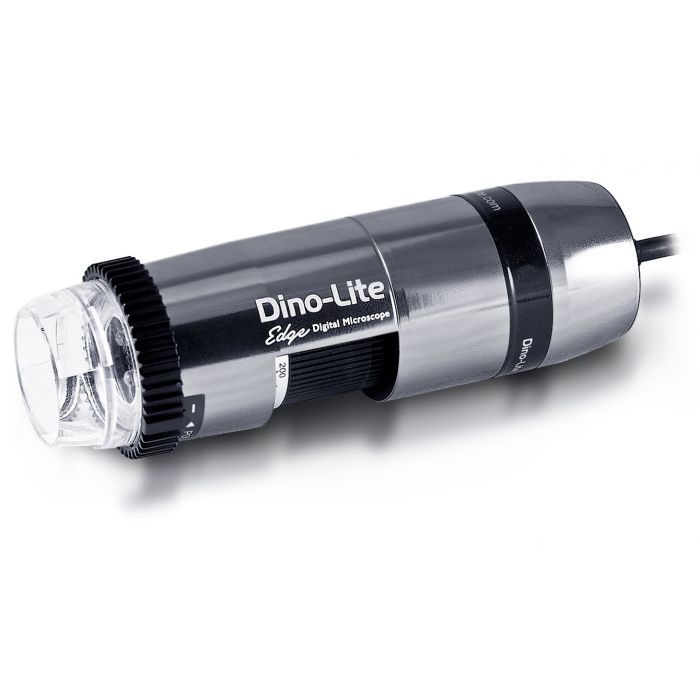

Product Information: AM7515MZTL USB Microscope

Key Features:
• 5 Megapixel Resolution
• Up to 140x Magnification
• Flexible Light Control (FLC)
• Polarization Filter
• Measurement Function & Calibration
• Accurate and Easy Measurements

The AM7515MZTL USB Microscope allows for precise measurements through the included software. With the measurement function, you can determine lines, angles, radii, and circles. The measurement results and corresponding images can be exported to Excel with just one click, facilitating the creation of a comprehensive measurement report.

Simple Calibration
Accurate calibration is essential for reliable measurements. The microscope comes with a calibration standard, making calibration quick and easy. The DinoCapture Software guides you through the calibration process to ensure precise results.

Polarization Filter for Optimal Lighting
The polarization filter is an essential tool for achieving proper lighting in microscopy. Its seamless adjustment helps reduce unwanted light reflections on the material, especially when analyzing reflective surfaces. This is crucial for obtaining clear and accurate results.

Front Cap System and Diffusers for Enhanced Viewing
The microscope features an advanced front cap system, allowing you to work without a front cap for a clearer view of the object. The microscope includes various front caps that can be easily added for optimal performance. Using diffusers also helps achieve a better light scattering effect, reducing reflections and improving image quality.

Durable and Portable Design
The AM7515MZTL is designed with a robust aluminum housing, providing both high stability and light weight, making it ideal for mobile use and easy to transport.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM7515MZTL
• Working Distance: Long
• Resolution: 5 Megapixels
• Magnification: 10x - 140x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement Function & Calibration
• Polarization Filter
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of microscopes that easily connect to a Windows PC or Mac via USB. There are also wireless models that transmit the signal directly to a smartphone. The included software allows for quick measurement of surfaces and components. Results can be exported directly to Excel, and images can be exported and processed in nearly any image format. With up to 8 Megapixels resolution, even the smallest details are clearly displayed. The built-in chipset ensures excellent color and image reproduction. Depending on the model, Dino-Lite microscopes can achieve up to 900x magnification, with typical use between 50x and 230x magnification.

Our Recommendation:
Pair this microscope with the RK-06 Stand for optimal fine adjustment capabilities, making it an ideal addition to your lab setup.
