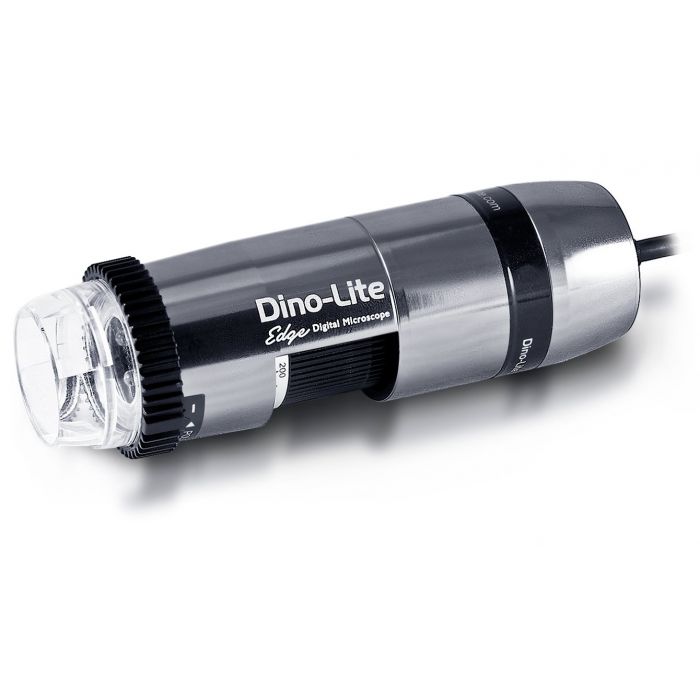

Product Information: AM7115MZTL USB Microscope

Key Features:
• 5 Megapixel Resolution for high-quality, detailed images
• Up to 140x Magnification for clear, in-depth analysis
• Measurement and Calibration Functions for accurate results
• Polarization Filter to reduce unwanted reflections
• Flexible Light Control (FLC) for customizable lighting
• Precise Measurements and Easy Calibration

The AM7115MZTL USB Microscope allows for quick and easy measurements through the provided software. With the measurement tool, you can measure lines, angles, radii, and circles. The measurement results, along with the corresponding image, can be exported to Excel with just one click, facilitating the creation of a detailed measurement report. Accurate calibration is essential for precise measurements, and the included calibration standard and easy-to-use software make the calibration process quick and simple. The DinoCapture Software guides you step-by-step to ensure reliable calibration and optimal results.

Advanced Lighting for Better Image Quality
Good lighting is crucial for high-quality results in microscopy. The AM7115MZTL features eight white LEDs in a ring light that provides ample lighting for your samples. The FLC (Flexible Light Control) allows you to adjust the LED brightness from 100% to 6.25%, or even turn them off completely. The LEDs can also be turned on and off in pairs to illuminate your sample from different angles, optimizing the lighting for better results. The polarization filter is an essential tool for controlling light reflection on your samples. Its adjustable setting helps reduce unwanted reflections on the material, which is especially useful for examining shiny surfaces.

Front Cap System for Enhanced Viewing
The AM7115MZTL features a front cap system, allowing you to work without a front cap for a clearer view of the sample. Different front caps are included (may vary depending on the model) and can be easily attached to the microscope, offering optimal performance for various applications. Diffusers are included to further scatter light, reducing reflections and improving image quality.

Durable and Lightweight Design
The AM7115MZTL USB Microscope is made with a high-quality aluminum housing, providing stability and durability. Its lightweight construction makes it ideal for portable use in various locations.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM7115MZTL
• Working Distance: Long
• Resolution: 5 Megapixels
• Magnification: 10~140x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement and Calibration Functions
• Polarization Filter
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite Microscopes are a series of various microscopes that easily connect via USB to a Windows PC or Mac. The series also includes wireless models that connect directly to a smartphone. The included software enables quick measurements of surfaces and components, with results easily exported to Excel. Images can be exported in virtually any format for further processing.

Up to 8 Megapixels resolution for clear, detailed images
High-quality color and image reproduction
Magnifications up to 900x, with normal usage typically between 50x and 230x

Our Recommendation:
For enhanced precision, we recommend pairing the AM7115MZTL USB Microscope with the RK-10 Stand for stable, fine-tuned adjustments. This combination will provide you with a complete lab setup for your applications.
