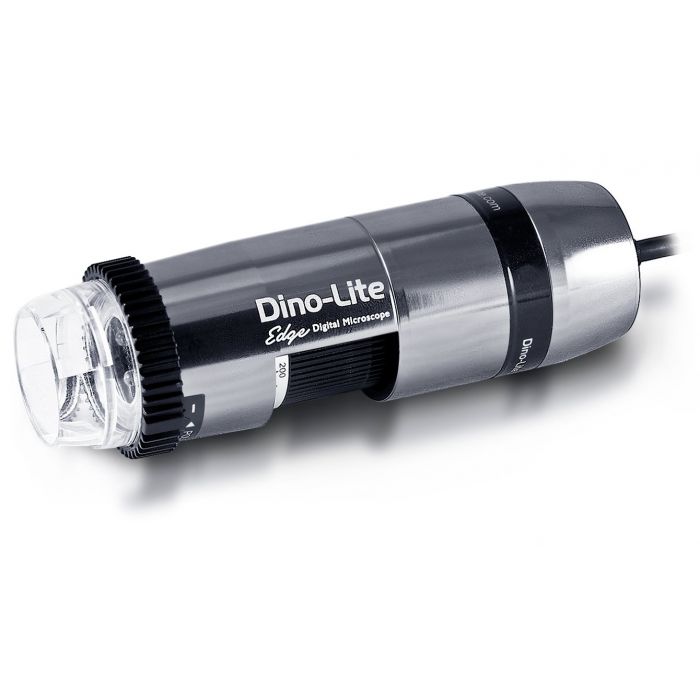

Product Information: AM7115MZT USB Microscope

Key Features:
• 5 Megapixel Resolution for clear, detailed images
• Up to 230x Magnification for detailed analysis
• Polarization Filter for optimal lighting and reduced reflections
• Measurement and Calibration Function for precise measurements
• Flexible Light Control (FLC) for adjustable lighting intensity
• Precise Measurements and Easy Calibration

The AM7115MZT USB Microscope is equipped with advanced features that allow you to perform accurate measurements, including lines, angles, radii, and circles. The measurement results, along with corresponding images, can be easily exported to Excel with just one click, creating a comprehensive report. The calibration process is crucial for precise measurements, and with the provided calibration standard and user-friendly software, the process is straightforward. The DinoCapture Software guides you step-by-step through the calibration process, ensuring the best results.

Advanced Lighting for Optimal Results
The AM7115MZT features a ring light with eight white LEDs. The FLC technology allows you to adjust the brightness of the LEDs, ranging from 100% to 6.25%, or even turn them off completely. This flexibility ensures the light is perfect for each sample. The polarization filter reduces unwanted reflections, especially on shiny surfaces, which is essential for accurate analysis. The front cap system allows you to work without a front cap for an unobstructed view. Various front caps are included for different applications, which can be easily mounted onto the microscope. Diffusers help scatter light, further minimizing reflections and improving image quality.

Sturdy and Lightweight Design
The AM7115MZT USB Microscope features a durable aluminum housing, offering robustness and lightness, making it an ideal choice for both portable use and different settings.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM7115MZT
• Working Distance: Standard
• Resolution: 5 Megapixels
• Magnification: 20~230x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement and Calibration Function
• Polarization Filter
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of various microscopes that connect to a Windows PC or Mac via USB. Some models also have a wireless connection for direct communication with smartphones. The included software enables quick measurements of surfaces and components, with results that can be easily transferred to Excel. Images can be exported in virtually any format for further processing.

Up to 8 Megapixel Resolution for detailed and clear imaging
Good color and image reproduction
Magnifications up to 900x (depending on the model)
Normal usage: Typically between 50x and 230x magnification

Our Recommendation:
We recommend pairing the AM7115MZT USB Microscope with the RK-06 Stand for precise adjustments, ensuring you have a complete lab setup for your applications.
