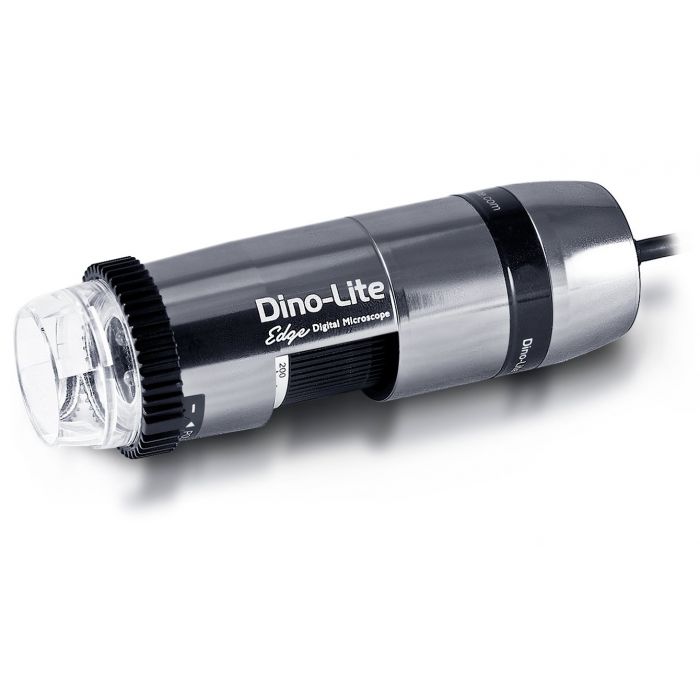

Product Information: AF7515MZT USB Microscope

Key Features:
• Magnification up to 220x
• Measurement function with calibration
• Automatic Magnification Reading (AMR)
• Megapixel resolution
• FLC – Flexible Light Control
• Integrated polarization filter

The AF7515MZT USB Microscope is a powerful and precise tool designed for detailed measurements and high-resolution imaging. The measurement function allows for accurate detection of lines, angles, radii, and circles. Users can export results directly to Excel, making it easy to generate comprehensive measurement reports.

Automatic Magnification Reading (AMR) for Higher Accuracy
The AMR function automatically transmits the microscope’s magnification level to the software, enhancing measurement precision and reducing errors. This feature supports both live analysis and post-capture measurements, allowing users to perform in-depth analyses efficiently.

Efficient Calibration for Reliable Results
To ensure consistent accuracy, the AF7515MZT microscope includes a calibration standard, which allows for quick and automatic calibration. The DinoCapture software guides users through a step-by-step calibration process, ensuring optimal measurement reliability.

Optimized Lighting with FLC Technology
Proper lighting is crucial for high-quality microscopy. The Dino-Lite AF7515MZT features a built-in ring light with eight white LEDs. Thanks to FLC (Flexible Light Control) technology, users can dim the LEDs from 100% to 6.25% or turn them off completely.

Additionally, LEDs can be controlled in pairs, allowing directional lighting from various angles to optimize illumination for different sample types.

Polarization Filter for Glare Reduction
The built-in polarization filter is an essential tool for reducing glare and reflections, particularly when analyzing shiny, reflective surfaces. With an adjustable intensity, this filter ensures clearer, more accurate imaging in precision applications.

Interchangeable Front Caps for Versatility
The AF7515MZT microscope features a modular front cap system, allowing users to operate it without a front cap for direct, unobstructed sample viewing.

The included front caps (which vary based on the model) can be easily attached for customized functionality. Additionally, diffuser options are available to modify light distribution, further reducing reflections and improving image clarity.

Durable and Portable Aluminum Casing
Designed for professional and industrial applications, the AF7515MZT USB Microscope is built with a high-quality aluminum casing, ensuring durability, stability, and portability.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Enhance your setup with compatible Dino-Lite stands for improved precision.

Technical Specifications:
• Brand: Dino-Lite
• Model Number: AF7515MZT
• Working Distance: Standard
• Resolution: [Megapixel - To be determined]
• Magnification Range: 10x – 220x
• FLC – Flexible Light Control
• Connection Type: USB 2.0
• Material: Aluminum casing
• Automatic Magnification Reading (AMR)
• Measurement function with calibration
• Integrated polarization filter
• Interchangeable front caps

What Are Dino-Lite Microscopes?
Dino-Lite USB microscopes are a versatile series of high-performance digital microscopes that connect seamlessly to Windows and Mac computers via USB. Some models also offer wireless connectivity, allowing direct transmission to Android smartphones.

The advanced software enables rapid surface and component measurements, with results exported directly to Excel for further processing.

With resolutions of up to 8 megapixels, even the smallest details are captured with exceptional clarity. The high-performance chipset ensures superior color accuracy and image quality. Depending on the model, magnification levels of up to 900x are possible, with typical applications ranging from 50x to 230x magnification.

Dino-Lite microscopes offer various advanced features, making them a top choice for industrial, scientific, and professional applications.

Our Recommendation:
For enhanced stability and precision, we recommend pairing this microscope with a Dino-Lite RK-06 stand, ensuring optimal performance for laboratory and industrial applications.
