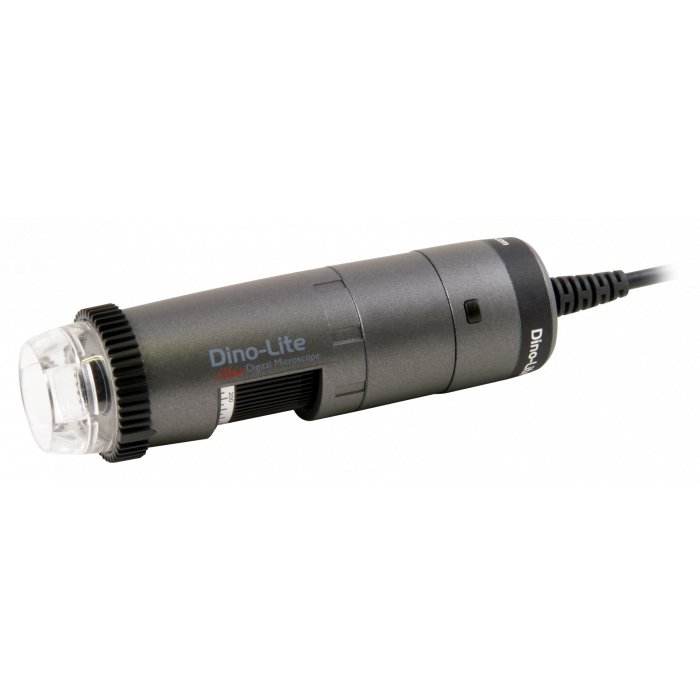

Product Information: AF4915ZTL USB Microscope

Key Features:
• Integrated polarization filter
• Automatic magnification reading
• Measurement function with calibration
• Magnification up to 140x
• 1.3 Megapixel resolution

The AF4915ZTL USB Microscope is designed for precise and efficient measurements, which can be conducted effortlessly through its intuitive software. Users can measure lines, angles, radii, and circles with ease. Measurement results, along with corresponding images, can be exported to Excel with a single click, streamlining the creation of detailed reports.

Enhanced Accuracy with Automatic Magnification Reading (AMR)
The AMR function allows the microscope to automatically transfer magnification values to the software, improving measurement accuracy and reducing errors. Measurements can be performed both on live images and saved images, ensuring flexibility in analysis.

Reliable Calibration for High Precision
Proper calibration is essential for accurate and repeatable measurements. The included calibration tool and user-friendly software make the calibration process quick and simple, guiding users step by step to achieve optimal precision.

EDOF – Extended Depth of Field for Superior Imaging
The EDOF function allows for capturing images with an extended depth of field, making it particularly useful for product photography by ensuring small objects remain sharp and well-defined throughout the image.

Advanced Lighting Control & Polarization Filter
Proper illumination is essential for high-quality microscopy. The Dino-Lite AF4915ZTL is equipped with a ring light featuring eight white LEDs. With FLC technology, users can adjust LED brightness from 100% down to 6.25% or turn them off completely. Additionally, the LEDs can be controlled in pairs, allowing for directional lighting adjustments to enhance imaging results.

The integrated polarization filter plays a crucial role in reducing glare and unwanted reflections, making it particularly valuable when examining shiny or reflective surfaces. This feature allows for clearer, more precise observations, making it an essential tool for professional applications.

Durable, Lightweight & Portable
The AF4915ZTL USB Microscope is housed in a high-quality plastic casing, offering both durability and stability. Its lightweight design makes it ideal for mobile use and field applications.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

V-profiles are an excellent addition to enhance Dino-Lite microscopes.

Technical Specifications:
• Brand: Dino-Lite
• Model Number: AF4915ZTL
• Working Distance: Long
• Resolution: 1.3 Megapixels
• Magnification Range: 10x – 140x
• Lighting Control: FLC – Flexible Light Control
• Connection Type: USB 2.0
• Feature: EDOF – Extended Depth of Field
• Material: Plastic casing
• Automatic Magnification Reading (AMR)
• Measurement function with calibration
• Integrated polarization filter
• Interchangeable front caps

What Are Dino-Lite Microscopes?
Dino-Lite USB handheld microscopes are a versatile series of digital microscopes that can be easily connected to Windows and Mac computers via USB. Additionally, some models feature wireless connectivity, allowing direct signal transmission to Android smartphones.

The integrated software simplifies surface and component measurements, allowing users to transfer results directly to Excel. Images can also be exported in various formats for further processing.

With resolutions of up to 8 megapixels, even tiny details are displayed with outstanding clarity. The high-performance chipset ensures superior color accuracy and image quality. Depending on the model, magnification levels of up to 900x are possible, though the most common applications range between 50x and 230x magnification.

Dino-Lite microscopes offer a variety of advanced features, making them a perfect choice for professional and industrial applications.
