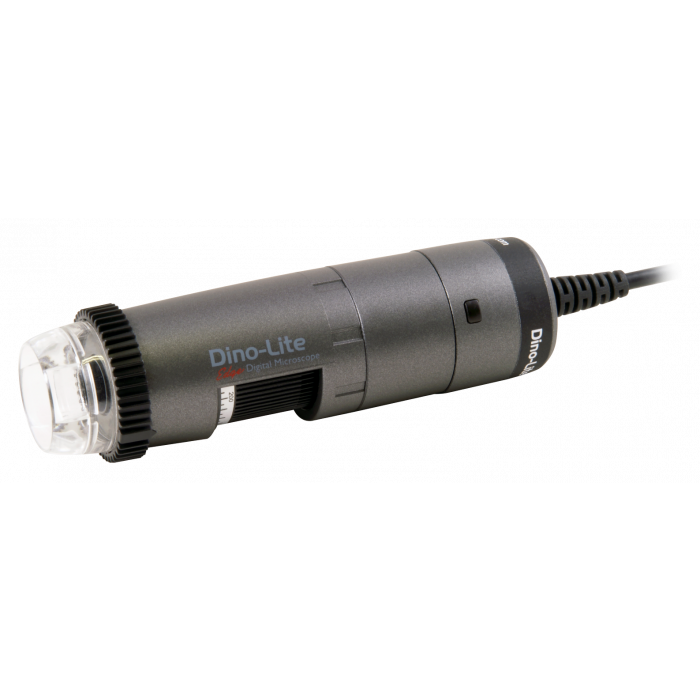

Product Information: AF4915ZT USB Microscope

Key Features:
• 1.3 Megapixel resolution
• Magnification up to 220x
• EDOF – Extended Depth of Field
• FLC – Flexible Light Control
• Measurement function with calibration

The AF4915ZT USB Microscope is designed for precise and efficient measurements, which can be conducted effortlessly through its intuitive software. Users can measure lines, angles, radii, and circles with ease. Measurement results, along with corresponding images, can be exported to Excel with a single click, simplifying the creation of detailed reports.

Enhanced Accuracy with AMR (Automatic Magnification Reading)
The AMR function allows the microscope to automatically transfer magnification values to the software, improving measurement accuracy and minimizing potential errors. This function enhances precision by allowing measurements to be performed on both live images and saved images, offering flexibility in analysis.

Reliable Calibration for High Precision
To ensure accurate and repeatable results, proper calibration is essential. The included calibration tool and DinoCapture software simplify the calibration process, guiding users step by step for optimal precision.

EDOF – Extended Depth of Field for Superior Imaging
The EDOF function provides an enhanced depth of field, enabling the microscope to capture the finest details in cells and tissue samples. This feature is particularly important for diagnostic and research applications, ensuring clearer and more detailed imaging.

Advanced Lighting Control & Polarization Filter
Proper illumination is essential for high-quality microscopy. The Dino-Lite AF4915ZT is equipped with a ring light featuring eight white LEDs. With FLC technology, users can adjust LED brightness from 100% down to 6.25%, or turn them off completely. Additionally, the LEDs can be controlled in pairs, allowing for directional lighting adjustments, further enhancing imaging results.

The integrated polarization filter plays a crucial role in reducing glare and unwanted reflections, making it particularly valuable when examining shiny or reflective surfaces. This feature allows for clearer, more precise observations, making it an essential tool for professional applications.

Durable, Lightweight & Portable
The AF4915ZT USB Microscope is housed in a high-quality plastic casing, offering both durability and stability—making it ideal for mobile and stationary use.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Lighting and control units are excellent accessories to further enhance Dino-Lite microscopes.

Technical Specifications:
• Brand: Dino-Lite
• Model Number: AF4915ZT
• Working Distance: Standard
• Resolution: 1.3 Megapixels
• Magnification Range: 20x – 220x
• Lighting Control: FLC – Flexible Light Control
• Connection Type: USB 2.0
• Feature: EDOF – Extended Depth of Field
• Material: Plastic casing
• Automatic Magnification Reading (AMR)
• Measurement function with calibration
• Integrated polarization filter
• Interchangeable front caps

What Are Dino-Lite Microscopes?
Dino-Lite USB handheld microscopes are a versatile series of digital microscopes that can be easily connected to Windows computers via USB. Additionally, the Wireless Series allows direct connectivity with Android smartphones.

The included software simplifies surface and component measurements, enabling users to transfer results directly to Excel. Images can also be exported in various formats for further processing.

With resolutions of up to 8 megapixels, even tiny details are captured with exceptional clarity. The high-performance chipset ensures superior color accuracy and image quality. Depending on the model, magnification levels of up to 900x are possible, though the most common applications range between 50x and 230x magnification.

Dino-Lite microscopes offer a variety of advanced features, making them a perfect choice for professional and industrial applications.

Our Recommendation:
For enhanced precision and stability, we recommend pairing this microscope with the RK-10 stand for fine adjustment control, along with a Dino-Lite multifunctional V-profile and cross-stage system, ensuring a fully equipped laboratory setup.
