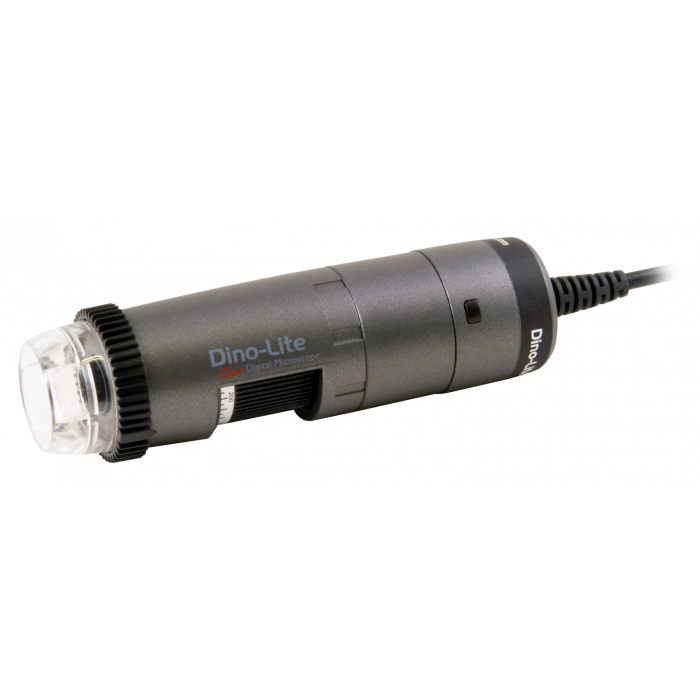

Product Information: AF4115ZT USB Microscope

Key Features:
• Measurement function and calibration capabilities
• Up to 220x magnification
• 1.3-megapixel resolution
• Built-in polarization filter
• FLC (Flexible Light Control) technology
• Precision Measurements & Calibration

The AF4115ZT USB Microscope allows for precise measurements that can be performed quickly and efficiently using the included software. It supports the measurement of lines, angles, radii, and circles. With just one click, both the measurement results and the corresponding image can be exported to Excel, simplifying the creation of detailed measurement reports. Calibration is essential for ensuring accurate measurements, and this microscope includes a calibration reference for easy and reliable calibration. The software guides users through the process to guarantee precise adjustments.

Advanced Lighting for Superior Imaging
Proper illumination is crucial for achieving high-quality microscopic images. Dino-Lite microscopes feature a ring light composed of eight white LEDs. Thanks to FLC technology, these LEDs can be controlled individually to provide optimal lighting for each sample. The LEDs can also be switched on and off in pairs, allowing for directional lighting adjustments. Additionally, the integrated polarization filter minimizes unwanted reflections, which is particularly beneficial when examining reflective surfaces.

Durable & Portable Design
The AF4115ZT USB Microscope boasts a lightweight yet sturdy plastic housing, making it an excellent choice for use in various locations and for easy transportation.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Product Specifications:
• Manufacturer: Dino-Lite
• Model Number: AF4115ZT
• Working Distance: Standard
• Resolution: 1.3 Megapixels
• Magnification Range: 20x – 220x
• Lighting Control: FLC (Flexible Light Control)
• Connection Interface: USB 2.0
• Housing Material: Plastic
• Features: Measurement function, calibration, polarization filter, interchangeable front caps
• Enhance your Dino-Lite microscope with compatible lighting and control units for an optimized experience.

What Are Dino-Lite Microscopes?
Dino-Lite USB handheld microscopes are a versatile range of digital microscopes that can be easily connected to a Windows PC or Mac via USB. Some models even feature wireless connectivity, allowing direct signal transmission to smartphones. The included software enables rapid surface and component measurements, with results seamlessly exportable to Excel. Images can be saved in various formats for further processing.

With resolutions of up to 8 megapixels, even the finest details are captured with exceptional clarity. The advanced chipset ensures superior color and image reproduction. Depending on the model, Dino-Lite microscopes offer magnification levels of up to 900x, though most common applications fall within the 50x to 230x range. A variety of additional features further enhance the functionality of these microscopes.

Our Recommendation:
For a complete lab setup, use this microscope in combination with the RK-10 stand, ensuring maximum stability and ease of use.
